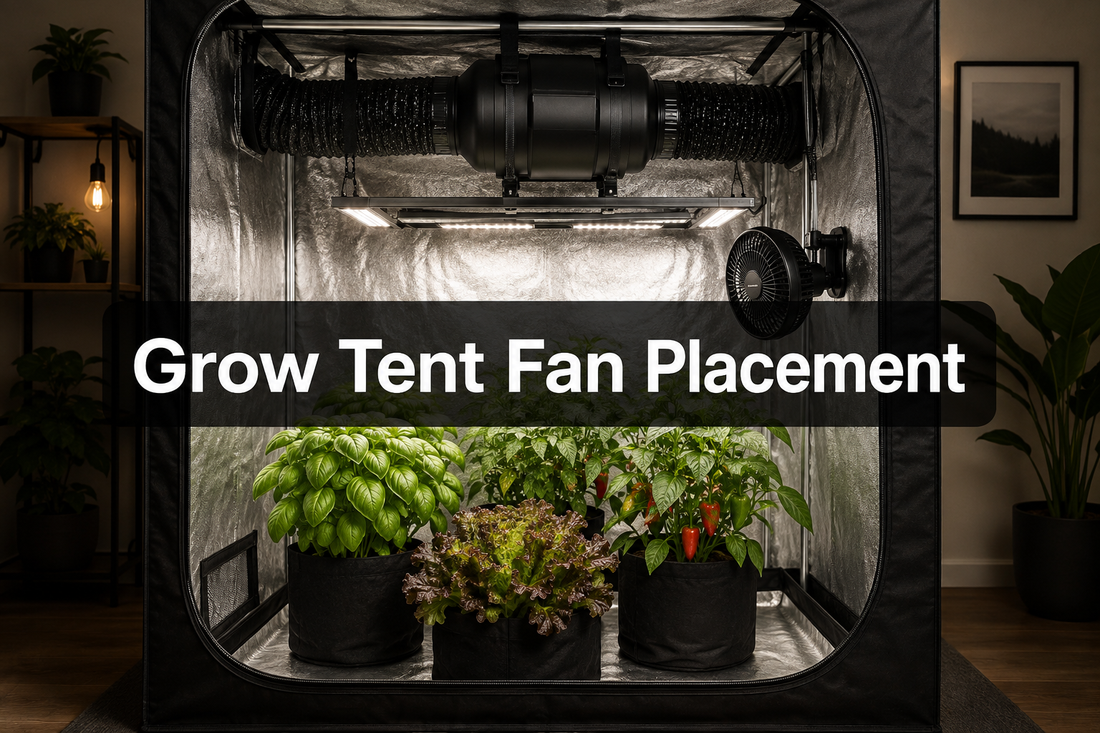

Grow Tent Fan Placement: Intake, Exhaust, and Circulation

Hold a paper strip near a lower vent, the canopy edge, and the upper exhaust port. If the strip changes direction, stops moving, or blows back toward the intake, the tent has fans but not a coherent airflow path. Good grow tent fan placement makes that path visible.

The layout must handle three separate zones: replacement air entering low, warm and humid air leaving high, and circulation passing around leaves without striking one plant continuously. A powerful fan in the wrong position can short-circuit intake air, collapse the tent, or leave dense foliage still.

This guide maps intake, exhaust, and circulation positions, then gives a closed-tent test for adjusting the layout after the light, filter, duct, and plants are installed.

Draw One Complete Air Path Through the Tent

Before mounting hardware, draw the enclosure as a side view. Mark the lower intake, plant canopy, light, upper exhaust port, filter, inline fan, duct route, outlet, and every circulation fan. The drawing should show where air enters, crosses the plant zone, and leaves.

Airflow component	Primary placement goal	Common placement failure
Passive or powered intake	Admit replacement air from a suitable lower area	Blocked vent, undersized opening, or intake next to exhaust discharge
Grow tent exhaust fan	Remove upper warm and humid air through a short route	Long crushed duct, abrupt inlet bend, or no service clearance
Canopy circulation fan	Move air across foliage without a harsh fixed blast	Pointed directly at one plant or blocked by leaves
Under-canopy circulation	Reduce still pockets around containers and lower growth	Fan sitting in runoff or blowing dry media and debris

Keep intake and exhaust separated. When both openings sit close together on the same side, incoming air can travel directly to the outlet without mixing through the canopy. That short circuit may leave the sensor near the stream comfortable while the rear corner stays warmer or wetter.

Also draw the surrounding room. Exhausting into a small closed room can raise that room’s temperature and humidity until the tent draws the same air back through its intake. The grow tent airflow guide explains the complete ventilation system; this page focuses on the physical locations inside that system.

Place Intake Low and Exhaust High

Warm air commonly accumulates above the light and canopy, so the upper part of the tent is the usual exhaust zone. Replacement air normally enters lower down, crosses the plant area, and moves toward that upper pickup.

Give the intake enough open area

A passive intake depends on the pressure created by the grow tent exhaust fan. Open a lower screened vent or duct port that draws from clean, conditioned room air. Keep fabric, storage, and containers from covering it. If the tent walls pull inward severely, intake restriction may be consuming useful airflow and placing extra load on the fan. The beginner setup guide helps reserve intake and exhaust ports before the equipment fills the enclosure.

Powered intake is not automatically better. It adds another fan that must be balanced with exhaust to avoid positive pressure and uncontrolled leakage. Use it only when the passive path cannot supply the required air and the controls can maintain the intended pressure relationship.

Protect the inline fan inlet and duct route

Place the filter, fan, and duct where each part has structural support and maintenance access. Avoid an abrupt elbow directly at the fan inlet because uneven entry can reduce installed performance. Keep flexible duct extended, minimize unnecessary bends, and prevent the tent wall from being sucked into an opening.

The fan can sit inside or outside if the current manual, airflow direction, supports, and room layout permit. Whether the system needs carbon is a separate decision covered in the grow tent carbon filter guide. Regardless of arrangement, the exhaust pickup should remain in the upper warm zone and the final outlet should not feed directly back into the intake.

If the missing part is the exhaust system, the TheOneGrow 6-Inch Inline Fan & Carbon Filter Combo is one option to compare against your duct diameter, installed airflow requirement, and available supports. It does not replace the circulation fans used around the leaves.

Aim Circulation Across and Below the Canopy

Exhaust sets the overall direction, but it rarely reaches every leaf surface. Containers, dense foliage, training screens, and the tent frame divide the interior into smaller zones. Circulation fans should connect those zones without becoming a constant wind source. For adjustable canopy circulation, compare the 6-Inch Oscillating Clip Fan and confirm its clamp fit and swing clearance against your tent.

Use the upper fan for a broad, gentle sweep

Mount the main grow tent fan near or slightly above canopy height and aim it across open space. Oscillation can reduce exposure time at one point, but verify the actual sweep after plants fill the tent. Leaves closest to the fan should move gently; they should not fold, dry at the edges, or lean away from the stream.

Do not point the fan directly at the environmental sensor. The reading may become unrepresentative if the sensor sits in a high-velocity stream, direct light, or near the exhaust pickup. Place it in representative canopy air and compare with another instrument during setup.

Add a lower circulation zone when foliage blocks air

A second small fan can move air below a dense canopy and around container gaps. Mount it above potential runoff, keep the grille clear of leaves, and aim through open lanes rather than directly at wet media. The purpose is mixing, not drying the root zone as quickly as possible.

• Keep clips and cords away from irrigation lines and moving doors.
• Reposition fans as the canopy rises and widens.
• Check the rear corners after training or adding equipment.
• Clean dust from grilles and blades with power disconnected.
• Leave access to adjust speed without reaching through plants.

Use a second fan for a separate still zone

With an open, low canopy, one gentle sweep may reach the front, rear and outer leaves. A second fan is not automatically an improvement. First remove avoidable obstructions and check the existing fan's direction and safe operating range.

A dense canopy can divide the tent into an upper leaf zone and lower container lanes. If the upper leaves move gently but the lower lanes remain still, repositioning the first fan may simply trade one dead spot for another. A separate lower circulation point can serve that lane, provided it stays above runoff and clear of leaves and wiring.

Compare the layouts with the exhaust unchanged: observe front and rear leaves, the space below the canopy, and the nearest plant throughout the fan's sweep. Keep the arrangement that reduces still areas without a persistent harsh blast. Opposing jets or two fans aimed at the same plant can add noise and stress without reaching the hidden corner.

Test Fan Placement With the Tent Closed

The final layout cannot be judged with the door open. Close the tent, run the light and all ventilation components, and wait long enough for temperature and humidity to approach a stable pattern. Then inspect direction, plant movement, and readings at more than one location. If the surrounding room remains the heat bottleneck, use the grow tent cooling guide before treating placement as the only problem.

1. Confirm intake direction. A light paper strip should move inward at the intended lower opening.
2. Check wall pressure. Slight inward movement is useful; severe collapse suggests restriction or excessive exhaust.
3. Map the canopy. Observe front, rear, center, edges, and below the leaves for gentle movement.
4. Compare temperatures. Measure representative lower, canopy, and upper zones instead of trusting one sensor.
5. Run a light-on cycle. Record the warmest and most humid period, including after watering.
6. Check the room. Make sure exhaust heat and moisture are not recirculating to the intake.

If the strip reveals weak flow, change one variable at a time: clear the intake, straighten a duct bend, adjust inline-fan speed, move a clip fan, or remove an obstruction. The clip fan and inline fan comparison helps identify which device owns the failed job.

The exact fan position changes as plants and equipment move. Keep replacement air entering through a suitable lower opening, collect exhaust from the upper warm zone, and aim gentle circulation across the canopy. Add a lower circulation zone only where observations show a still pocket, then recheck with the complete enclosure operating.

Conclusion

Grow tent fan placement should create one continuous path: suitable room air enters low, moves across the plant zone, mixes around the canopy, and leaves through an upper exhaust route. The best layout separates intake from discharge and gives every fan one clear job.

Verify the path with the tent closed, lights on, filter and duct installed, and plants in their working positions. For current exhaust, circulation, filter, and duct options, compare the TheOneGrow grow tent ventilation collection and match the hardware to the measured room rather than a diagram alone.

Frequently Asked Questions

These answers address common placement choices without treating one layout as universal.

Should a grow tent exhaust fan go at the top?

Usually, because the upper zone often collects warm air. The exact port depends on the light, filter, duct route, and structure, but the pickup should serve the warm zone without blocking equipment access.

Should the intake be opposite the exhaust?

Separation is helpful because it reduces short-circuiting. An opposite lower intake often creates a longer path across the tent, but confirm the result with smoke-free direction tests and temperature measurements.

Where should I place an oscillating fan?

Place it near or slightly above canopy height and aim across open space for gentle movement. Add a lower fan only when containers or dense foliage create a separate still zone.

How often should fan placement be adjusted?

Recheck after plants grow, training changes the canopy, equipment moves, or seasonal room conditions shift. A position that worked for seedlings may be blocked by mature foliage later.
