4-Inch Inline Fan vs 6-Inch: Choose the Right Exhaust Size
A 4 inch inline fan can be a practical exhaust choice for a compact grow tent, while a 6 inch inline fan offers a larger duct path and more potential airflow headroom. Diameter alone does not tell you which system will work better after a carbon filter, flexible duct, bends, speed control, and room conditions are added.
Start with the airflow the installed system needs, then compare fan curves or rated performance under resistance where available. A larger fan running slowly may be useful in some rooms, but it can also add cost, bulk, and incompatible ports.
This guide compares 4-inch and 6-inch systems by tent volume, resistance, noise strategy, installation, and future changes.
Table of Contents
Start With Required Airflow and System Diameter
Four inches and six inches describe nominal duct connection size, not one guaranteed airflow. Different motors, impellers, housings, speeds, and test methods produce different performance within the same diameter class. Compare exact models.
A larger duct has more cross-sectional area, which can support more airflow at a lower air velocity for a given volume. It also requires larger ports, filters, ducting, clamps, and installation space. Adding a reducer does not preserve every advantage of the larger path because the smaller section and fitting add resistance.
The fan is one part of a circuit. Air must enter the tent, pass through the growing space, move through the filter and duct, cross the fan, and discharge into a suitable room or outlet. A restriction anywhere in that path changes performance.
Calculate the Required Airflow Before Choosing Diameter
Start with interior volume:
tent volume in cubic feet = length × width × height
Then select a planning exchange interval based on the crop, heat, humidity, and room air. Dividing volume by the desired minutes per exchange gives a baseline CFM. This is a planning value, not the final fan rating.
For example, a 3 × 3 × 5.8-foot interior is about 52 cubic feet, while a 4 × 4 × 6.7-foot interior is about 107 cubic feet. Exchanging each theoretical volume once per minute would start at approximately 52 CFM and 107 CFM before resistance and environmental demands.
Do not turn those examples into universal recommendations. The room supplying intake air must be suitable, and the required heat or moisture removal may call for a different airflow. Use the grow tent airflow guide to map the complete path.
Account for Carbon Filter and Duct Resistance
Free-air CFM describes operation with little or no system resistance. Installed airflow is lower when a carbon bed, duct, bends, grilles, restrictive intake openings, or dirty components increase pressure loss. This is why two systems with the same advertised CFM can behave differently.
Fan-performance curves show the relationship between airflow and pressure for a specific fan and speed. The operating point occurs where fan performance meets system resistance. When a useful curve is unavailable, use the manufacturer’s complete-kit guidance conservatively and verify the finished setup with temperature, humidity, tent pressure, and airflow observations.
Reduce avoidable losses:
- keep flexible duct as short and straight as the room allows;
- avoid crushed sections, deep sags, and tight elbows;
- match the filter, fan, duct, and ports without unnecessary reducers;
- provide enough clean intake area;
- service or refill the filter according to current instructions.
Never equate free-air ratings with delivered airflow through a filter.

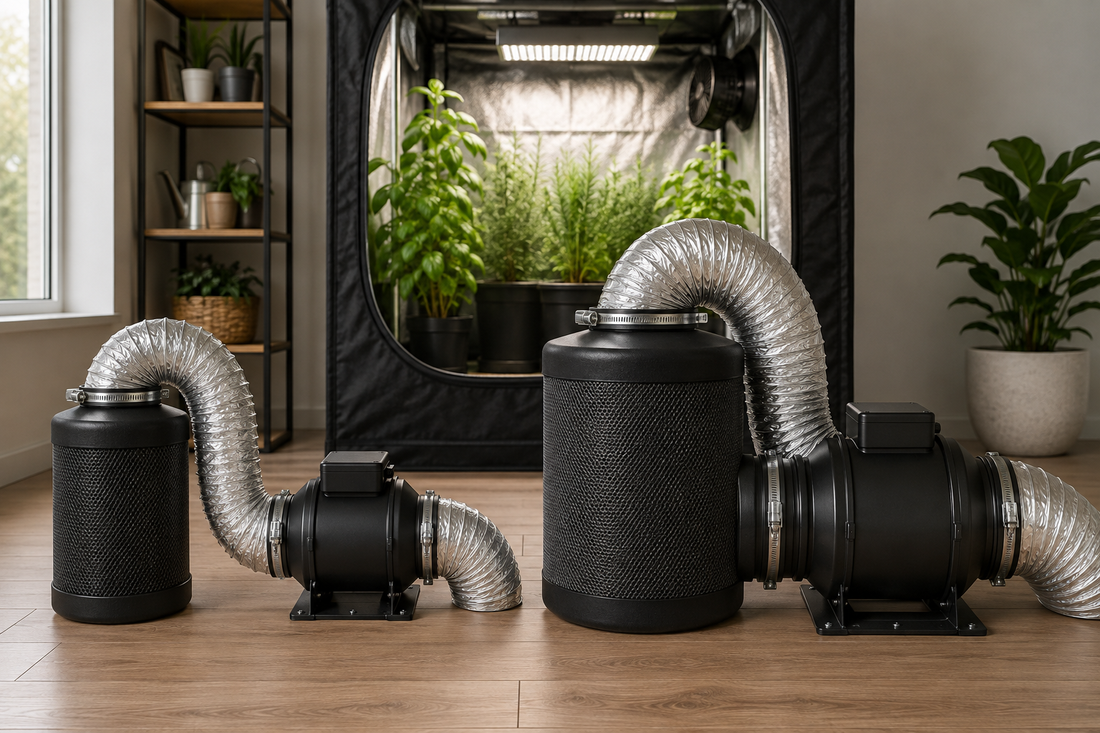

Compare 4-Inch and 6-Inch Inline Fan Systems
This original matrix helps you compare complete paths rather than isolated motors. Fill the last column with the exact model specifications and room measurements.
| Factor | 4-inch system | 6-inch system | Your check |
|---|---|---|---|
| Physical size | More compact | Larger fan, filter, duct, and clamps | Port and overhead clearance |
| Potential airflow | Model-dependent compact range | Model-dependent higher headroom | Required CFM at resistance |
| Speed strategy | May run at a higher setting | May meet the target at a lower setting | Compare measured sound and control range |
| Compatibility | Fits many compact ports | Needs larger matching path | Tent, filter, duct, controller |
| Future change | Focused on current compact setup | More possible headroom | Is expansion dated and funded? |
The comparison does not produce a winner without exact fan data. A well-matched 4-inch path can outperform a poorly installed 6-inch path for the intended task.
That is why a 4 inch vs 6 inch inline fan search must end with an installed-system comparison.
Plan Noise and Speed Control as a System
Fan diameter is not a sound rating. Motor design, fan speed, airflow velocity, filter resistance, flexible duct vibration, mounting, and room surfaces all affect what you hear. Compare published sound data only when test conditions are reasonably similar.
Oversizing slightly and operating below full speed can reduce airflow noise in some installations, but extreme oversizing can create poor low-speed control, bulky hardware, tent-wall collapse, or unnecessary cost. A speed controller must be approved for the exact fan.
Use vibration-isolating straps where permitted, keep duct from touching resonant surfaces, and remove sharp flow restrictions. Do not enclose a motor in improvised soundproofing that blocks required cooling or violates instructions.
Measure sound at the position that matters—such as a bedroom doorway—not only beside the fan. Also check night operation when the room is otherwise quiet.
Choose a 4-Inch or 6-Inch Inline Fan
Turn the calculation and system comparison into a shortlist by matching each diameter to a real installation. These profiles clarify when the compact path is sufficient and when a larger matched path earns its extra space and cost.
When a 4-Inch Inline Fan Fits Better
A 4-inch system is often easier to install when the tent is compact, the duct run is short, the filter is matched, and the calculated airflow remains within the exact fan’s installed capability. It also uses less overhead and exterior space.
The current TheOneGrow 4-Inch Inline Fan & Carbon Filter Combo includes a speed-controlled fan, refillable carbon filter, ducting, timer, thermometer/hygrometer, and installation hardware. The site positions it as a planning option for compact through mid-size tents; verify your heat, humidity, path, and current specifications.
When a 6-Inch Inline Fan Fits Better
A 6 inch inline fan belongs on the shortlist when the tent volume, lighting heat, moisture load, long or restrictive duct path, or future confirmed enclosure requires more delivered airflow than the smaller option can provide comfortably.
The current TheOneGrow 6-Inch Inline Fan & Carbon Filter Combo combines a larger speed-controlled fan and refillable filter with matching ducting and hardware. The current page positions it for larger layouts, but exact performance still depends on the installed route and room.
Do not choose six inches only because it sounds safer. Confirm the tent ports, filter, controller, power, mounting space, low-speed behavior, and outlet path.
Conclusion
A 4 inch inline fan is a strong compact-system candidate when it can deliver the required airflow through the real filter and duct path. A 6-inch system offers more potential headroom but needs matching ports, components, space, and controllability. Diameter is a system choice, not a direct CFM promise.
Calculate the requirement, minimize resistance, and compare current specifications in the TheOneGrow ventilation collection. Then run the assembled system empty and verify canopy-level temperature, humidity, airflow, noise, and tent pressure. Record the speed setting and room conditions so future filter maintenance or seasonal changes can be compared against a known baseline.
Frequently Asked Questions
These answers clarify the most common 4-inch versus 6-inch decisions.
Is a 4-inch inline fan enough for a 3×3 tent?
It can be, but tent label alone is not enough. Calculate volume and account for the carbon filter, duct, bends, intake area, lighting heat, humidity, room air, and the exact fan’s performance.
Is a 6-inch fan quieter than a 4-inch fan?
Not automatically. A larger fan at lower speed may be quieter in some systems, but motor design, mounting, duct velocity, restrictions, and test conditions all matter. Compare exact models and installations.
Can I connect a 6-inch fan to a 4-inch tent port?
A reducer may make a physical connection, but the smaller section and fitting add resistance and can increase velocity or noise. Verify product instructions and consider a fully matched duct path.
Should I buy a larger fan for future expansion?
Only when the future tent, timing, ports, filter, controller, and room are defined. Otherwise, optimize the current installed system instead of paying for hypothetical headroom.
