Exhaust Fan Size Calculator for Grow Tents: CFM Step by Step
If a grow tent stays hot or humid even with an exhaust fan running, the problem often starts before installation: the fan was chosen from the tent label or free-air rating instead of the airflow the complete system must deliver. Two “3×3” tents can need different exhaust capacity when their height, grow-light heat, carbon filter, duct route, and intake room are different.

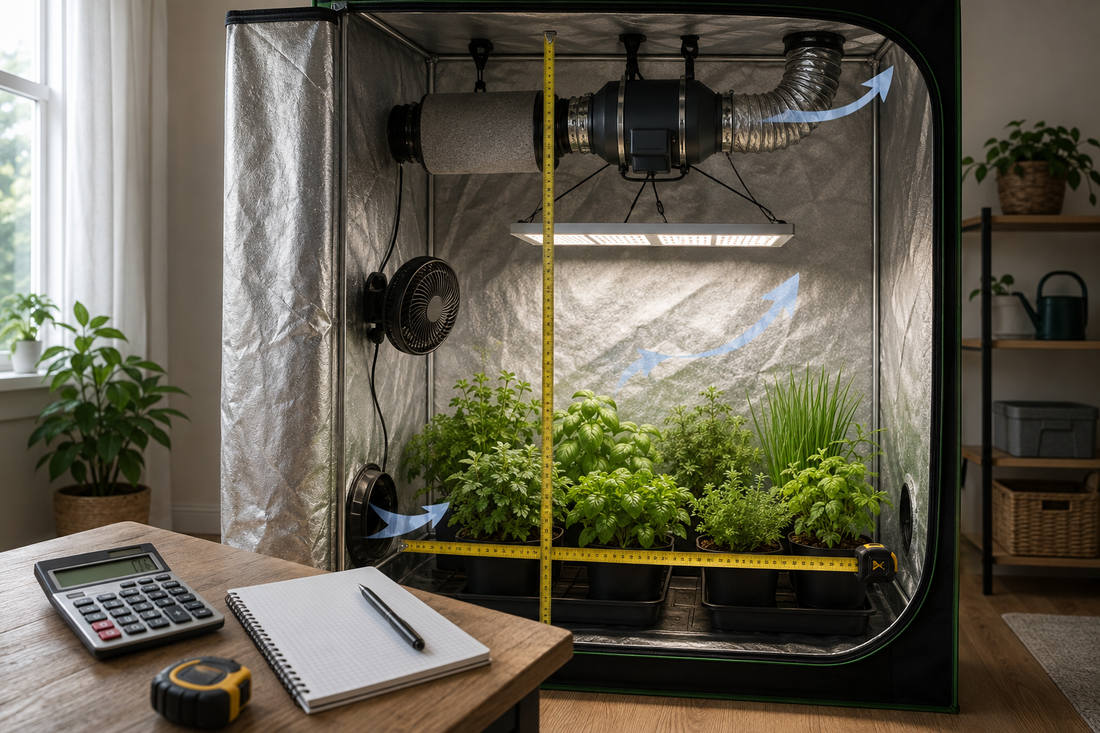

An exhaust fan size calculator gives you a defensible starting point. Multiply interior length × width × height to get volume, then divide by the planned minutes per air exchange. A 3 × 3 × 5.8-foot tent holds about 52.2 cubic feet, so a one-minute planning interval starts at roughly 52 CFM—before filter and duct losses.
This guide takes that baseline through the decisions that actually affect fan size. You will calculate CFM, account for resistance and environmental load, build a fan shortlist, and verify the finished grow tent ventilation system after installation.
Table of Contents
Calculate Tent Volume and Baseline CFM
A useful result begins with the inside dimensions and the system you intend to install. Do not guess from a product nickname such as “3×3” if the exact internal height and usable volume are available.
- Interior length, width, and height: use feet for a direct cubic-foot result.
- Planning exchange interval: the number of minutes allowed for one theoretical volume change.
- Filter: model, rated range, condition, and service plan.
- Duct path: diameter, total length, material, bends, reducers, and discharge point.
- Intake path: passive opening or fan, screen, and the quality of room air supplied.
- Environmental load: lighting heat, crop moisture, room temperature, humidity, and seasonal extremes.
Keep every input visible. A calculator that hides its exchange interval and loss assumption may produce a precise-looking answer that cannot be checked.
Calculate Grow Tent Volume
For a rectangular tent:
volume (ft³) = length (ft) × width (ft) × height (ft)
A 3 × 3 × 5.8-foot interior is approximately 52.2 cubic feet. A 4 × 4 × 6.7-foot interior is approximately 107.2 cubic feet. Use the actual model dimensions rather than these examples when purchasing.
Volume tells you how much air is inside the enclosure at one moment. It does not tell you how quickly heat or moisture enters, how restrictive the filter is, or whether the room air can absorb the exhaust. Those questions come after the baseline.
If equipment occupies part of the tent, using the full rectangular volume is a simple conservative starting point. Do not spend time subtracting every pot and fan while ignoring larger uncertainties such as filter pressure loss.
Convert Volume to Baseline CFM
CFM means cubic feet per minute. Divide the tent volume by the number of minutes selected for one theoretical air exchange:
baseline CFM = tent volume ÷ minutes per exchange
If the 52.2-cubic-foot example uses a one-minute planning interval, baseline airflow is 52.2 CFM. At a two-minute interval, it is 26.1 CFM. The 107.2-cubic-foot example produces 107.2 CFM at one minute.
The exchange interval is an assumption, not a law of plant growth. The required grow tent ventilation also depends on heat, humidity, crop density, room air, and any odor-control requirement. A warm intake room cannot cool a tent merely because the fan moves the calculated volume.
Use the grow tent airflow guide to separate exhaust, intake, and internal circulation.
Add Resistance and Environmental Headroom
The baseline is the airflow you want delivered. A fan’s free-air rating is not necessarily what it delivers through a carbon filter and duct system. Filters, duct friction, bends, reducers, grilles, and small intake openings increase pressure loss.
The strongest method is to identify required airflow and estimated system pressure, then select a fan whose performance curve reaches that operating point. Fan curves describe the relationship between airflow and pressure for a specific model and speed.
On the model-specific chart, locate your required CFM on the airflow axis and the estimated system static pressure on the pressure axis. Check which speed curve can supply that combination within the manufacturer’s recommended operating range. Maximum free-air CFM and maximum static pressure describe different endpoints, not a pair the fan delivers together. Check the pressure units and whether the test already includes a filter, so you do not count the same loss twice. Greenheck’s performance-table examples show how airflow, pressure, and speed must be read together.
When complete curve and filter-loss data are unavailable, do not disguise a percentage as precision. Create low-, expected-, and high-resistance scenarios, shortlist a speed-controllable system with reasonable headroom, and verify after assembly. Avoid multiplying several arbitrary “extra 25%” rules that were written for unknown products.
Environmental headroom is separate from duct loss. If temperature or humidity—not volume exchange—drives the requirement, test during the most demanding expected period and improve the room as well as the fan path.
Use the CFM Worksheet and Build a Fan Shortlist
Copy this worksheet into a note or spreadsheet. It keeps the mathematical result separate from the engineering and environmental decisions.
| Step | Calculation or check | Your value | Evidence |
|---|---|---|---|
| 1 | Length × width × height | ___ ft³ | Current tent dimensions |
| 2 | Volume ÷ minutes per exchange | ___ baseline CFM | Written planning assumption |
| 3 | List filter, duct, bends, ports, intake | low / expected / high loss | Manuals and installed layout |
| 4 | Check heat and moisture driver | room/crop notes | Lights-on/off measurements |
| 5 | Select at operating pressure | model and speed range | Fan curve or manufacturer data |
| 6 | Run and verify | pass / adjust | Temperature, humidity, pressure, airflow |
This grow tent ventilation CFM calculator keeps the arithmetic transparent: the basic cfm calculator stops after Step 2, while Steps 3–6 turn that number into an installed ventilation decision.
Check the units and test the loss assumption
When a listing gives inches, calculate length × width × height ÷ 1,728 to obtain cubic feet. The current 3x3, 4x4 and 5x5 tent listings give the dimensions below. These are planning volumes from listed dimensions, not measured clear interior volumes; substitute your actual inside measurements for the final calculation.
| Listed tent dimensions | Calculated volume | 1-minute exchange assumption | 2-minute exchange assumption |
|---|---|---|---|
| 36 × 36 × 70 in | 52.50 ft³ | 52.50 CFM | 26.25 CFM |
| 48 × 48 × 80 in | 106.67 ft³ | 106.67 CFM | 53.33 CFM |
| 59 × 59 × 80 in | 161.16 ft³ | 161.16 CFM | 80.58 CFM |
A nominal 5x5 label does not mean this listing is 60 inches on each side. Keep the actual dimensions in the grow tent size plan. For metric fan ratings, 1 CFM ≈ 1.699 m³/h, so the 52.50 CFM example is about 89.2 m³/h.
To see how sensitive a shortlist is to losses, suppose the installed airflow were 80%, 65%, or 50% of a free-air rating at the same speed. These percentages are hypothetical scenarios, not measured losses or specifications for TheOneGrow fans. For a 52.50 CFM delivered target:
| Hypothetical delivered fraction | Arithmetic | Implied free-air rating |
|---|---|---|
| 80% | 52.50 ÷ 0.80 | 65.63 CFM |
| 65% | 52.50 ÷ 0.65 | 80.77 CFM |
| 50% | 52.50 ÷ 0.50 | 105.00 CFM |
If 20% of the rating were lost, multiplying the target by 1.20 would not fully compensate: 52.50 × 1.20 × 0.80 = 50.40 CFM. The fraction itself changes with the fan, speed and system resistance, so use this table to expose uncertainty, not approve a purchase. Confirm the operating point with the fan curve and system pressure, as explained in Greenheck's fan performance guide, then run the installed test below.
Turn the CFM Result Into a Fan Shortlist
Compare complete fan-and-filter systems with matching duct size. Check physical fit, electrical rating, speed range, controller compatibility, filter service, noise information, and whether performance data cover the expected resistance.
Use the TheOneGrow 4-Inch Inline Fan & Carbon Filter Combo and 6-Inch Inline Fan & Carbon Filter Combo as candidates for your shortlist. Start with the duct and tent-port fit, then compare the airflow each fan can deliver through your planned filter and duct run. A larger duct diameter alone does not establish the installed airflow or prove that a kit meets your CFM target.
Before choosing, obtain the model-specific airflow data at the intended speed and resistance. If the listing does not provide enough performance data, ask for the fan curve and compatible filter pressure-loss information. Keep that candidate unconfirmed until you can check the operating point; the tent-size label and duct diameter cannot replace this check.
Choose enough controllable capacity for the expected installed condition. More free-air CFM is not automatically better if the result creates excess noise, strong negative pressure, difficult low-speed control, or a mismatched port.
Verify Installed Grow Tent Ventilation
Assemble the tent, filter, fan, duct, intake, circulation, light, and controls. Run the system empty through the planned day and night schedule, then repeat checks as crop mass increases.
- Confirm air enters through the intended intake and exits through the filter path.
- Observe slight negative pressure without severe wall collapse.
- Measure temperature and humidity at canopy height, not against the tent wall.
- Check for stagnant pockets with circulation operating.
- Listen for duct vibration, whistling restrictions, and unstable speed control.
- Inspect and service the filter and duct path when performance changes.
If heat remains high, do not assume another fan always solves it. The intake room may need improvement. Review how to reduce heat in a grow tent and investigate the source.
Also log the lights-off period: cooling air can raise relative humidity even without added water vapor. Record temperature and RH together at the intake and canopy; RH readings at different temperatures do not directly compare moisture content. Check that the exhaust controller can respond to humidity when heat demand falls. If the incoming air cannot remove enough moisture, improve room moisture control rather than only increasing fan speed. UMass Extension’s humidity guidance explains why temperature, moisture removal, and air movement must be considered together.
Conclusion
An exhaust fan size calculator provides a baseline: tent volume divided by the planned minutes per exchange. The purchase decision comes afterward, when you account for carbon-filter and duct resistance, intake air, heat, humidity, fan performance, speed control, and physical compatibility.
Use the worksheet to create a defensible CFM target, then compare current options in the TheOneGrow ventilation collection. Commission the finished system and keep the measurement record; installed conditions are the final test. Recheck that record after the canopy fills, the filter ages, or seasonal room conditions change, because the original airflow assumption may no longer describe the system.
Frequently Asked Questions
These answers explain what the formula can and cannot determine.
How do I calculate CFM for a grow tent?
Multiply interior length, width, and height in feet, then divide the volume by your planned minutes per air exchange. Treat that as delivered baseline airflow before system resistance and environmental load.
How much extra CFM should I add for a carbon filter?
Use the filter’s pressure-loss data and the fan curve when available. A universal percentage is only a rough scenario because filters, loading, duct paths, and fans differ.
Is one air exchange per minute required?
It is a common planning scenario, not a universal law. Crop load, heat, humidity, room air, filtration, and measured conditions determine whether the selected interval is suitable.
Why is my installed airflow lower than the fan rating?
The rating may be a free-air value. Carbon filters, duct friction, bends, reducers, grilles, restricted intakes, dirt, and speed settings add resistance or reduce the operating point.
